Comparing High Voltage DC Contactors and AC Contactors: What’s the Difference?

In modern electrical systems, the use of contactors is essential for switching and controlling circuits. Whether it’s for industrial machines, renewable energy systems, or commercial power distribution, contactors are critical components. However, contactors are designed for different types of electrical currents, primarily alternating current (AC) and direct current (DC). While both types of contactors perform similar functions, the challenges they face and the technologies used to address those challenges differ greatly due to the inherent characteristics of AC and DC power.

This article will compare high voltage DC contactors with AC contactors, discussing their fundamental differences, the technical challenges each faces, their applications, and the key factors that influence their selection for specific use cases.

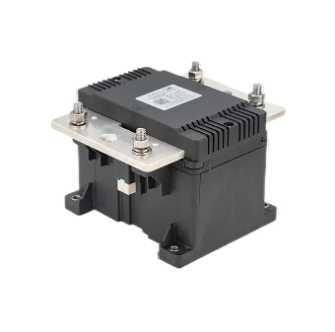

What are Contactors?

Before diving into the differences between DC and AC contactors, it’s essential to understand what a contactor is. A contactor is an electrically controlled switch that allows the connection or disconnection of a circuit when triggered by a control signal. It is typically used in systems where circuits must be frequently opened and closed, such as in electric motors, heating systems, and lighting circuits.

In both AC and DC systems, contactors are used to control power flow, but the electrical characteristics of AC and DC currents create different challenges when designing and using contactors.

What Is the Difference Between AC and DC?

Before delving into the specific differences between DC and AC contactors, it’s important to understand the fundamental difference between the two types of electrical current.

1. Alternating Current (AC)

• Nature of AC: In an AC circuit, the direction of the current reverses periodically. This means the voltage alternates between positive and negative values in a sinusoidal pattern, making it a continuous, oscillating flow of energy.

• Common Use: AC is most commonly used for power generation and distribution, especially for residential, commercial, and industrial applications. The AC grid is designed to operate with this oscillating current, which is easier to generate and transmit over long distances.

•


2. Direct Current (DC)

• Nature of DC: Unlike AC, DC is a constant flow of electricity in a single direction. The current flows steadily from the negative to the positive terminal, providing a constant voltage that doesn’t reverse direction.

• Common Use: DC is typically used in applications where a steady, non-varying voltage is required. It is often found in batteries, electronic devices, electric vehicles, and renewable energy systems like solar and wind power, where the energy output is often in DC form before it is converted to AC.

The Challenges of Switching AC and DC Circuits

The fundamental difference between AC and DC currents leads to different challenges when switching circuits. These challenges affect the design and functionality of AC and DC contactors.

1. Switching AC Circuits

• Arcing in AC Circuits: In AC systems, the current naturally reaches a zero-crossing point during each cycle. This means the current briefly becomes zero before reversing direction. This natural interruption in the flow of current makes it easier to interrupt the circuit and prevents prolonged arcing (electrical sparks). AC contactors take advantage of this zero-crossing point to open the circuit with less stress on the contacts.

• Contact Design: AC contactors are designed to withstand the frequent zero-crossing points, making them more forgiving in terms of the wear and tear on their contacts. These contactors are optimized for handling high currents without damaging the switching mechanism.

•


2. Switching DC Circuits

• Arcing in DC Circuits: Unlike AC, DC current does not naturally reach zero. When a DC circuit is opened, the current continues to flow, which can lead to arcing—an electrical discharge that can damage contacts, create heat, and potentially cause fires. This is one of the primary reasons why DC contactors need to be more robust and specialized in comparison to their AC counterparts.

• Contact Design: DC contactors must be designed to handle the continuous flow of current, often with additional arc suppression technologies such as magnetic blowouts, arc chambers, and special materials for the contacts. These features help extinguish the arc before it can cause damage, thus ensuring a longer operational life for the contactor.

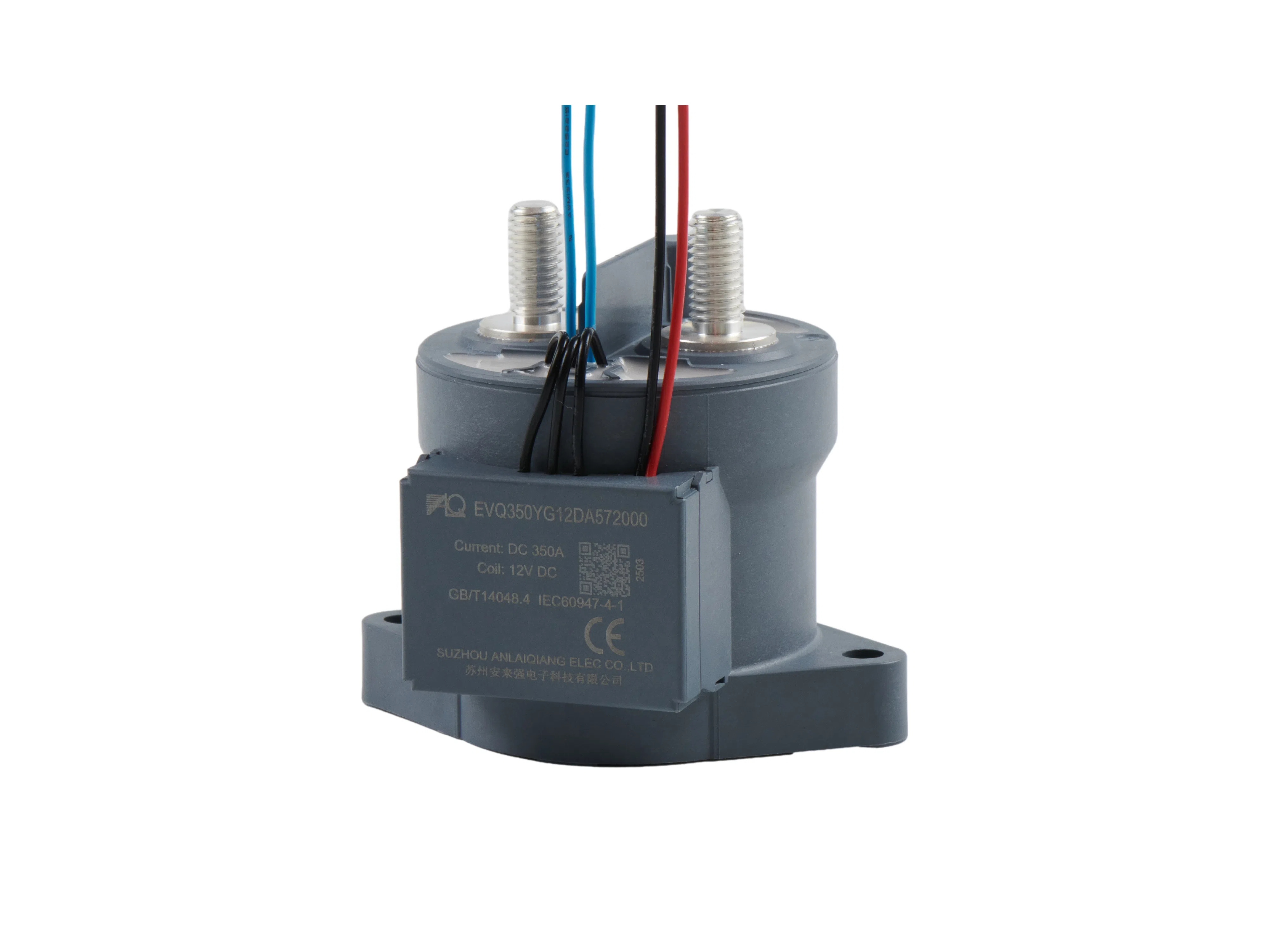

Key Differences Between High Voltage DC Contactors and AC Contactors

Here, we’ll explore the key differences between high voltage DC contactors and AC contactors, examining the features that distinguish them and how these differences influence their performance and applications.

1. Voltage and Current Handling

• High Voltage DC Contactors: These contactors are designed specifically to handle high voltage DC circuits, which can range from hundreds to thousands of volts. DC contactors must manage the continuous flow of electricity, which is a challenge when dealing with high currents. Due to the risk of arcing, these contactors typically feature more robust contact materials and advanced arc-extinguishing technologies.

• AC Contactors: AC contactors, on the other hand, are designed to handle the typical voltage levels of residential or industrial AC power. These contactors are generally rated to handle standard AC grid voltages (e.g., 120V, 230V, 380V, 480V), and the switching mechanism is designed to take advantage of the zero-crossing of the AC current.

2. Arcing and Contact Protection

• High Voltage DC Contactors: As mentioned earlier, one of the major challenges of switching DC circuits is arcing. High voltage DC contactors are built to prevent sustained arcing by using arc suppression technologies. These include magnetic blowouts, which direct the arc away from the contacts, and specially designed arc chambers, which contain the arc and cool it quickly to extinguish it.

• AC Contactors: AC contactors are less vulnerable to arcing because of the natural zero-crossing points of AC current. When the contacts open, the current is already at zero, making it easier to interrupt without significant arcing. As a result, AC contactors tend to have simpler arc-extinguishing mechanisms than their DC counterparts.




3. Durability and Longevity

• High Voltage DC Contactors: Given the continuous nature of DC current and the need for additional arc suppression, high voltage DC contactors tend to be more robust and durable than AC contactors. They must be able to withstand repeated operations in high-stress environments, such as those found in renewable energy systems, electric vehicles, and industrial applications.

• AC Contactors: While AC contactors are also durable, they typically undergo less mechanical stress than DC contactors. The natural zero-crossing of AC reduces the wear on the contacts, resulting in a longer lifespan under normal operating conditions. However, AC contactors in heavy-duty applications (e.g., motor control) may still require frequent maintenance.




4. Size and Complexity

• High Voltage DC Contactors: Due to the higher demands placed on DC contactors, especially at high voltages, these contactors tend to be larger and more complex. The additional safety mechanisms, such as arc suppression devices, also add to their size and cost.

• AC Contactors: AC contactors are typically more compact and simpler in design. Since the switching operation is less complex (due to the zero-crossing point), AC contactors can be designed with fewer components and less advanced arc suppression, making them more cost-effective and suitable for a wide range of applications.




5. Applications

• High Voltage DC Contactors: High voltage DC contactors are most commonly used in systems where DC power is generated, stored, or distributed. This includes renewable energy systems (solar panels, wind turbines, and energy storage systems), electric vehicles (EVs), and DC motor drives. High voltage DC contactors are necessary for controlling the flow of electricity in these systems, ensuring safety, efficient power conversion, and grid integration.

• AC Contactors: AC contactors are widely used in a variety of industries for switching AC circuits. They are commonly found in industrial motor control systems, HVAC systems, lighting control systems, and residential applications. AC contactors are also used in grid systems for controlling power distribution and for connecting AC loads to the main power supply.

Choosing the Right Contactor for Your Application

When selecting between a high voltage DC contactor and an AC contactor, several factors need to be considered:

• Type of Electrical Current: If the system operates on DC, especially at high voltages (e.g., renewable energy systems), a high voltage DC contactor is essential. For systems with AC power, such as standard industrial machinery or home appliances, an AC contactor is the appropriate choice.

• Voltage and Current Ratings: Ensure that the contactor selected is rated for the voltage and current of the application. High voltage DC contactors are specifically designed for larger voltages and currents, while AC contactors are better suited for standard AC voltage levels.

• Arcing Risk: If arcing is a concern (especially in high current DC circuits), it’s essential to choose a contactor with proper arc suppression technology. This is more of a concern for DC circuits than for AC circuits.

• Application Type: Consider the specific needs of your application. High voltage DC contactors are typically used in renewable energy systems, electric vehicles, and large DC motor systems, while AC contactors are found in general industrial, commercial, and residential power control applications.

Conclusion

High voltage DC contactors and AC contactors serve similar purposes—controlling the flow of electricity in circuits—but their design, functionality, and applications differ significantly due to the inherent properties of AC and DC currents. While DC contactors face challenges like arcing and the need for additional protection,AC contactors are generally simpler and more cost-effective due to the natural zero-crossing of AC current.

Understanding these differences is crucial when selecting the right contactor for your application. By choosing the appropriate contactor for your system, you ensure reliable, efficient, and safe operation—whether you are working with renewable energy, industrial equipment, or residential power systems.
