How to Choose the Right High-Voltage DC Contactor for Your Application

In today’s rapidly evolving industries, from electric vehicles (EVs) to renewable energy storage systems, the importance of reliable and efficient high-voltage DC contactors cannot be overstated. These components are integral to the safe and effective operation of systems that rely on direct current (DC), such as battery management systems (BMS), solar energy systems, and electric vehicles. A high-voltage DC contactor is essentially a switch that controls the flow of electrical current in high-voltage circuits, playing a critical role in the protection and efficiency of various applications.

Choosing the right high-voltage DC contactor for your specific application requires an understanding of the operational requirements, as well as the different features and specifications that affect performance, safety, and longevity. This article will guide you through the important considerations for selecting the best high-voltage DC contactor for your needs, helping you make an informed decision that ensures the optimal performance of your system.

Understanding High-Voltage DC Contactors

Before delving into how to select the right high-voltage DC contactor, it is essential to first understand what these components do.

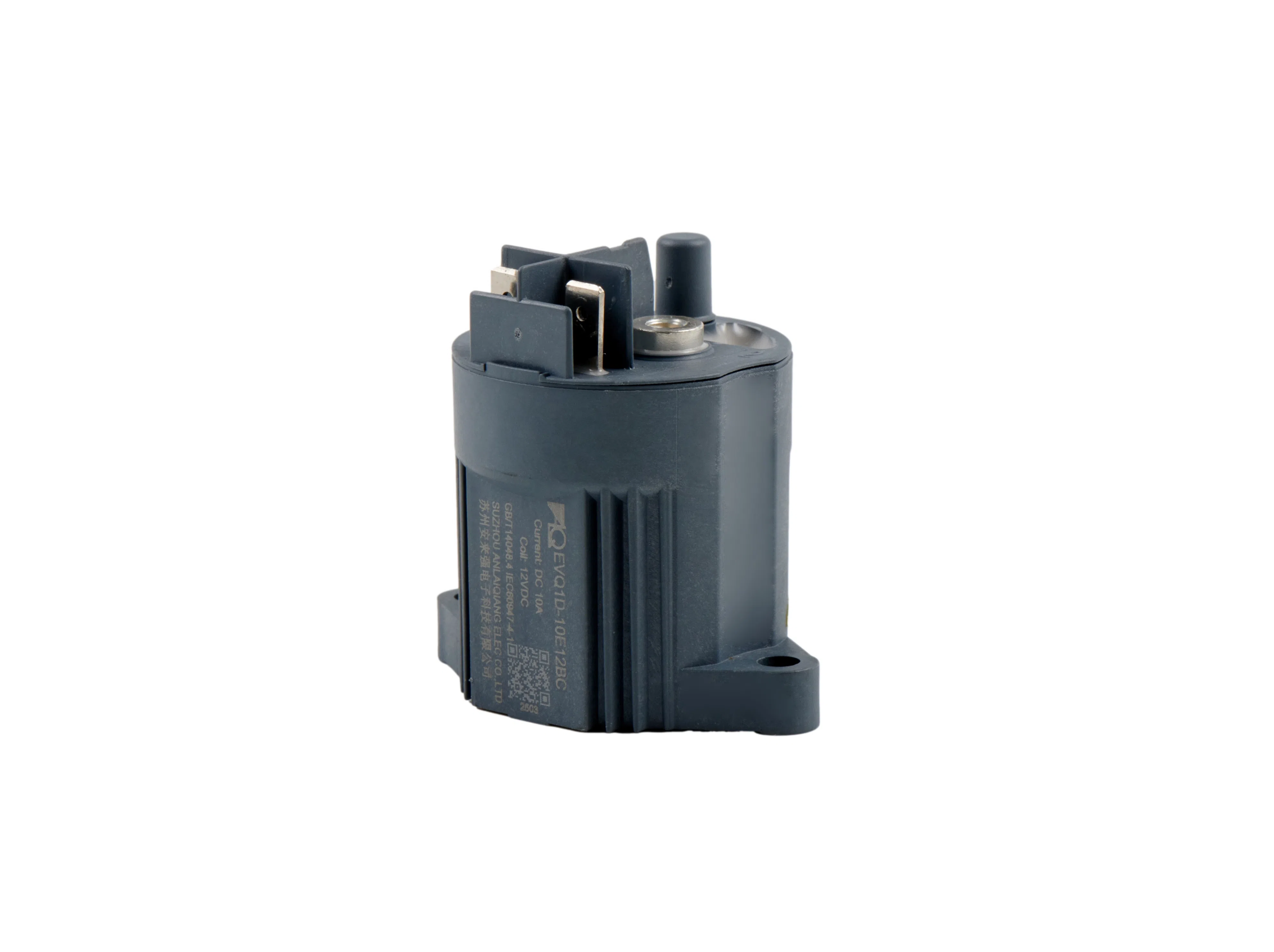

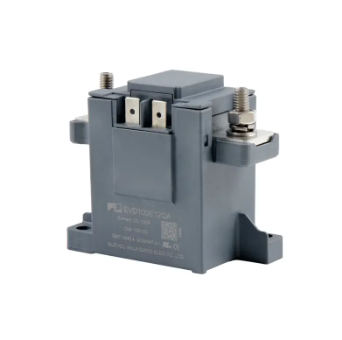

A high-voltage DC contactor is an electrical switch used to connect and disconnect high-voltage direct current (DC) circuits. These contactors are built to handle large currents and voltages without causing damage to the system. Unlike alternating current (AC) systems, DC systems do not have natural zero-crossing points (where current reverses direction), which makes it more challenging to break a DC circuit without causing arcing. As such, DC contactors are designed with specialized materials and mechanisms that ensure safe operation, even under extreme conditions.

These contactors are used in a variety of applications, including electric vehicles, renewable energy systems (such as solar power and wind energy), battery storage systems, and high-power industrial applications. In these systems, high-voltage DC contactors help manage the flow of electricity, protect sensitive components, and ensure overall system reliability.

Key Factors to Consider When Choosing a High-Voltage DC Contactor

Selecting the right high-voltage DC contactor is a critical decision for ensuring both the safety and efficiency of your system. Several key factors should be considered before making a choice, including current rating, voltage rating, switching characteristics, arc suppression, and more. Here’s a detailed look at each of these factors:

1. Current Rating

The current rating is one of the most important specifications to consider when selecting a high-voltage DC contactor. The contactor must be able to handle the maximum current that will flow through the system without overheating, degrading, or causing failure. If the contactor is undersized, it can lead to overheating, damage to components, and even system failure.

• Common Current Ranges: For high-voltage DC applications, current ratings typically range from 10A to 250A or even higher, depending on the application. For example, in electric vehicle applications, a contactor rated for 100A or more may be required, while industrial battery systems may require even higher current ratings.

• Continuous vs. Surge Current: It's also important to distinguish between the continuous current rating and the surge current rating. The surge current is the initial current spike that occurs when the circuit is first connected. The contactor should be able to handle these brief surges in current without failure.




2. Voltage Rating

The voltage rating of the contactor specifies the maximum voltage the component can handle without risk of breakdown or arcing. High-voltage DC contactors are typically rated for voltages ranging from 200V to over 1000V.

• Application Considerations: Electric vehicles, for instance, often operate at 300V to 600V, while renewable energy storage systems may use voltages from 400V to 1000V or more. It is crucial to choose a contactor that matches the voltage requirements of your specific system to ensure reliable operation and prevent electrical hazards.

•


3. Arc Suppression

In DC circuits, the lack of zero-crossing points makes it much harder to break the circuit without generating an electric arc. If not properly managed, these arcs can cause damage to the contactor's contacts and lead to system failure. Therefore, a high-quality DC contactor must have effective arc suppression technology.

• Arc-Quenching Features: Look for contactors that incorporate features such as vacuum arc chambers, magnetic arc blowout, or gas-filled chambers, all of which help to suppress or extinguish the arc when the circuit is opened.

• Arc Duration: The contactor should be able to interrupt the circuit quickly to minimize the duration of the arc. The longer the arc duration, the greater the damage to the contactor.

•


4. Contact Material

The material of the contacts within the contactor is crucial for both durability and performance. Contactors for high-voltage DC applications often use materials like silver or copper alloys, which are good conductors and can withstand the heat generated during operation.

• Durability: The contact material should be able to handle repeated switching cycles without degradation. This is especially important in systems with frequent charging and discharging, such as in electric vehicles or renewable energy systems.

• Corrosion Resistance: In high-humidity or harsh environmental conditions, corrosion resistance is a key consideration. Some contactors come with protective coatings that prevent corrosion and extend their lifespan.

•


5. Mechanical and Electrical Endurance

Mechanical endurance refers to the number of times the contactor can open and close the circuit before it starts to wear out. Electrical endurance refers to how many times the contactor can open and close while conducting electrical current.

• Mechanical Life: For battery management systems and electric vehicles, a high-quality contactor should offer at least 100,000 cycles of mechanical life.

• Electrical Life: The electrical life of a contactor is influenced by its ability to handle the currents and voltages typical of your system. A high-voltage DC contactor should be rated for at least 50,000 switching cycles under electrical load to ensure long-term reliability.

•


6. Size and Space Requirements

Space constraints are a critical consideration when selecting high-voltage DC contactors, especially in applications like electric vehicles and renewable energy storage systems. The contactor must fit within the available space while still meeting the performance and safety requirements.

• Compact Design: Many modern DC contactors are designed to be compact and lightweight, making them ideal for systems with limited space, such as electric vehicles. Look for a contactor with a small footprint but high current and voltage ratings.

• Mounting Options: Consider whether the contactor offers flexible mounting options for easy integration into your system. Some contactors are designed for panel mounting, while others may be designed for chassis or surface mounting.




7. Cost and Manufacturer Reputation

While performance is critical, the cost of the contactor should also be considered. A higher-quality contactor may come with a higher price tag, but it can save you money in the long term by offering better reliability, safety, and longevity.

• Reputation of the Manufacturer: Choose a manufacturer with a reputation for producing high-quality, reliable components. Look for suppliers that offer warranties and good customer support, as well as access to technical documentation and resources.

Conclusion

Selecting the right high-voltage DC contactor is essential for ensuring the safety, performance, and efficiency of systems that rely on high-voltage DC circuits. By considering factors such as current and voltage ratings, arc suppression, mechanical and electrical endurance, and the material and design features of the contactor, you can ensure that your system operates efficiently and safely.

As industries continue to move toward more sustainable energy solutions, such as electric vehicles, renewable energy storage, and battery management systems, the role of high-voltage DC contactors in these systems will continue to grow in importance. By choosing the right contactor, you ensure that your system remains reliable, safe, and efficient for years to come.

For businesses seeking reliable, high-quality high-voltage DC contactors, Suzhou ALQ Electronic Technology Co., Ltd. provides a range of products designed to meet the rigorous demands of modern energy systems. Their high-performance contactors offer the reliability, safety, and efficiency necessary to power the future of energy storage and transportation solutions.
