In today’s rapidly evolving world of energy storage and electric power, Battery Management Systems (BMS) play a crucial role in ensuring the efficient, safe, and long-lasting operation of batteries. As industries embrace electric vehicles (EVs), renewable energy systems, and other energy storage solutions, the importance of robust and reliable battery management systems cannot be overstated. One essential component of these systems is the high voltage DC contactor, which ensures the proper functioning, safety, and efficiency of these batteries.
High voltage DC contactors are critical in the management of electrical circuits that involve direct current (DC) and high voltages, such as those found in battery systems. These contactors help control the flow of power, protect against faults, and maintain the integrity of the entire system. This article will explore the importance of high voltage DC contactors in Battery Management Systems (BMS), their function, how they contribute to overall battery safety, and why their selection is vital for the optimal performance of energy storage systems.
Before diving into the role of high voltage DC contactors, it’s important to understand what a Battery Management System is and why it is so essential in modern energy storage solutions.
A Battery Management System (BMS) is an integrated system that monitors and controls the performance of rechargeable batteries in applications like electric vehicles, solar power systems, and grid energy storage. It is responsible for managing the battery’s state of charge (SOC), state of health (SOH), temperature, and voltage across individual cells. The BMS also ensures safe charging and discharging, provides protection against overcharging, overheating, and short-circuiting, and optimizes the overall lifespan and performance of the battery.
In order for a BMS to perform its functions effectively, several key components must work in harmony. One such component is the high voltage DC contactor, which plays a pivotal role in managing the flow of current between the battery and the system, enabling efficient operation and enhancing safety.

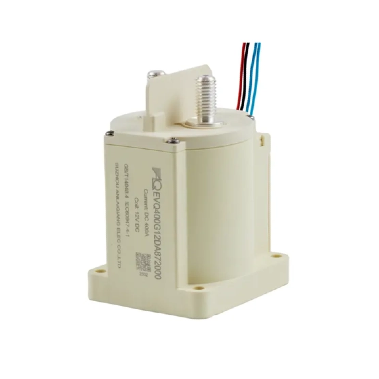

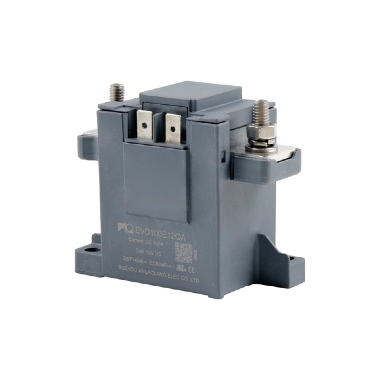

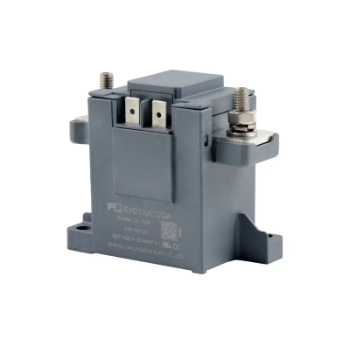

A high voltage DC contactor is an electrical switch used to control the flow of high voltage direct current (DC) in a circuit. These contactors are designed to handle high power loads, and unlike standard AC contactors, they are built to withstand the challenges posed by DC power, such as arcing when the contacts open. High voltage DC contactors are integral components of systems like electric vehicles (EVs), renewable energy storage, and grid storage solutions, where the efficient and safe management of high-voltage DC circuits is crucial.
When a contactor is used in a BMS, it is responsible for isolating the battery from the rest of the system when needed (e.g., during charging, discharging, or when a fault occurs). The contactor is typically controlled by the BMS to ensure the correct current flows at the appropriate times, ensuring both efficiency and safety.
One of the primary functions of high voltage DC contactors in a BMS is to control the switching between charging and discharging phases. A contactor in a battery system is responsible for switching the battery on or off depending on whether it is charging or discharging.
Charging Control: During the charging phase, the DC contactor connects the battery to the charging circuit. The BMS will regulate the charging parameters (such as voltage and current) to ensure the battery is charged optimally without overcharging, which could damage the battery cells.
Discharging Control: During the discharging phase, when the battery is supplying power to the load (e.g., an electric vehicle or a renewable energy system), the contactor ensures that the power flow from the battery is uninterrupted, while also ensuring the system is within the voltage and current limits set by the BMS.
In both phases, the high voltage DC contactor ensures that the power is transmitted only when necessary and prevents any unwanted or hazardous power flows that could compromise the safety or efficiency of the system.
Battery systems, especially high voltage ones, can be prone to various electrical faults that could lead to dangerous situations, such as short circuits, overvoltage, or undervoltage events. High voltage DC contactors are essential for quickly disconnecting the battery from the system in the event of a fault.
Short Circuit Protection: In the event of a short circuit, the contactor will immediately open to isolate the battery and prevent further damage. The BMS continuously monitors the system for signs of a short circuit and signals the contactor to open if a fault is detected.
Overcurrent Protection: A high voltage DC contactor can also serve as a protective device against excessive currents, which may occur due to sudden power surges or faults in the system. By disconnecting the battery when excessive current is detected, the contactor helps protect the battery cells from overheating or damage.
Overvoltage and Undervoltage Protection: High voltage DC contactors are also important for protecting the battery from overvoltage and undervoltage conditions. If the voltage level exceeds or drops below safe operating limits, the contactor disconnects the battery from the system to prevent damage to the cells.
High voltage DC contactors are also important for allowing the safe isolation of the battery pack during maintenance, repair, or system upgrades. When maintenance is required, the BMS can signal the contactor to disconnect the battery from the rest of the system, ensuring that technicians can work on the system safely, without the risk of electric shock or short circuits.
Moreover, contactors are critical in preventing accidental energization of the system when repairs are being made, especially in the case of high voltage DC systems, where the risk of electrical hazards is significantly higher.
The effective use of high voltage DC contactors in a Battery Management System also contributes to maximizing the life and efficiency of the battery. By precisely controlling the battery’s charging and discharging cycles, DC contactors help avoid deep discharges and overcharging, two of the primary factors that shorten the lifespan of battery cells.
Additionally, DC contactors enable energy-efficient operation by ensuring that power only flows when necessary and disconnecting the battery during idle periods or when the power needs to be isolated. This helps reduce losses due to parasitic current draws, improving overall system efficiency.
High voltage DC systems, particularly in applications like electric vehicles and grid energy storage, often operate with high currents—sometimes in the range of 100A to 250A or more. Standard contactors are not designed to handle such high currents without experiencing excessive wear or heat buildup. High voltage DC contactors, however, are specifically designed to safely manage these high currents while minimizing the risks associated with arcing, overheating, and contact damage.
When selecting a high voltage DC contactor for use in a Battery Management System, several key features must be considered to ensure optimal performance, safety, and longevity. These include:
Current Rating: The contactor must be rated for the maximum current that the system will carry, with common ratings in the range of 100A to 250A for high-voltage systems.
Voltage Rating: The contactor must also be able to handle the maximum voltage present in the system. High voltage DC contactors are often rated for voltages ranging from 200V to over 1000V, depending on the application.
Arcing Suppression: As DC systems do not have a natural zero-crossing point like AC systems, the contactor should be equipped with arc suppression technologies, such as magnetic blowouts or vacuum technology, to prevent damage to the contacts.
Size and Compactness: For battery management systems, space is often limited, so the contactor must be compact yet capable of handling high current and voltage efficiently.
Reliability: The contactor must be durable and capable of withstanding frequent switching cycles, especially in applications like electric vehicles, where the system is in constant operation.
High voltage DC contactors are indispensable components in modern Battery Management Systems, where they play critical roles in controlling power flow, protecting the battery from faults, enabling safe isolation, and optimizing battery performance. By carefully managing high voltage DC circuits and ensuring the safe and efficient operation of batteries, DC contactors help ensure the longevity, safety, and reliability of energy storage systems, such as electric vehicles, renewable energy storage systems, and grid storage.
For anyone looking to enhance the performance and safety of their battery management systems, choosing the right high voltage DC contactor is essential. Companies like Suzhou ALQ Electronic Technology Co., Ltd. offer high-quality contactors that meet the rigorous demands of modern energy systems, ensuring that your battery systems operate efficiently and safely for years to come.
