As the world transitions towards more sustainable energy sources, renewable energy systems, such as solar and wind power, have become central to meeting the growing demand for clean, efficient electricity. These systems rely on advanced technologies to manage and control the flow of electricity, ensuring that energy is harvested, stored, and distributed effectively. One such crucial component that plays a key role in the operation and safety of renewable energy systems is the high voltage direct current (DC) contactor.
High voltage DC contactors are specialized electrical switches used to control the flow of electricity in high voltage DC circuits. They are essential in renewable energy applications, where electricity is often generated, stored, and transmitted in DC form, particularly in solar and wind power systems. In this article, we will explore the role of high voltage DC contactors in renewable energy systems, highlighting their importance, key features, and specific applications.

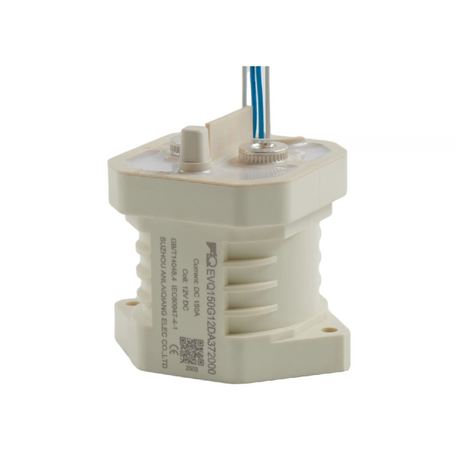

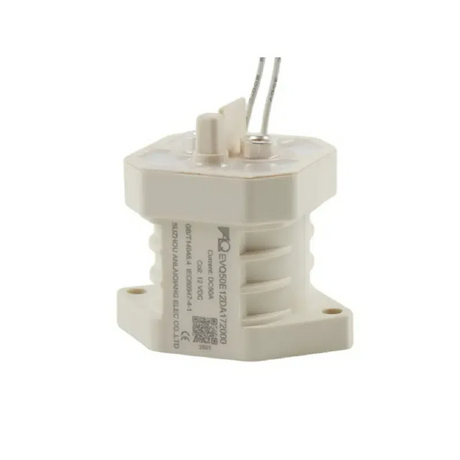

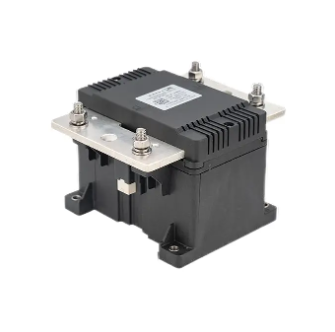

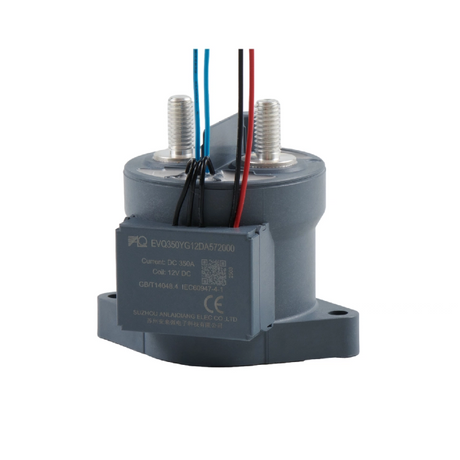

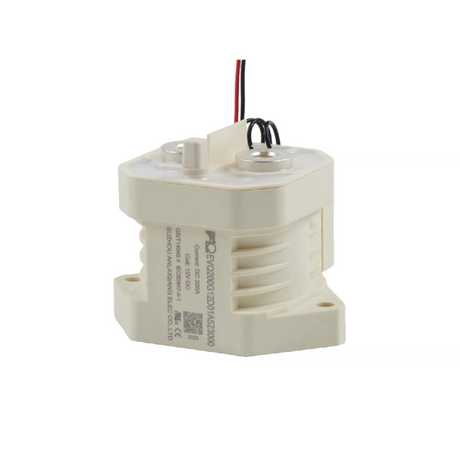

A high voltage DC contactor is an electrical switching device designed to open or close high voltage DC circuits. Unlike alternating current (AC), which periodically reverses its direction, DC power flows in one continuous direction. When switching DC circuits, especially at high voltages, the risk of electrical arcing—an unwanted discharge of electricity across the contact points—becomes more significant.
High voltage DC contactors are built to safely handle this challenge by providing fast, reliable switching, while preventing arcing and ensuring the stability and safety of the electrical system. These contactors are used in renewable energy systems to control the flow of electricity between various components, such as solar panels, wind turbines, battery storage systems, and power inverters.
Renewable energy systems often involve the conversion, storage, and transmission of electricity in high-voltage DC form. Here are the primary reasons why high voltage DC contactors are indispensable in these systems:
Renewable energy systems, such as solar power plants or wind farms, generate electricity in DC format, which must be converted into AC for grid integration. High voltage DC contactors are used to control the power flow between various components in the system, such as between the solar panels and battery storage, or between the battery storage and the grid inverter. These contactors ensure that energy is delivered efficiently, minimizing losses and optimizing the performance of the system.
For example, in a solar power system, high voltage DC contactors may be used to manage the connection between the solar panels and the charge controller, allowing the operator to disconnect the system for maintenance or to prevent overcharging of the batteries. In a wind power system, DC contactors are employed to safely switch power between the wind turbine’s generator and the energy storage units.
One of the critical roles of high voltage DC contactors is to provide safety and protection in renewable energy systems. These systems often operate under harsh conditions, including exposure to extreme weather, fluctuating voltage levels, and high current demands. High voltage DC contactors are designed with several safety features to handle these challenges and prevent electrical accidents, fires, or system damage.
Key safety features include:
Overload Protection: Prevents excessive current from flowing through the system, reducing the risk of overheating or damaging sensitive components.
Short-Circuit Protection: Disconnects the circuit quickly in the event of a short circuit, preventing potential hazards and system failures.
Arc Suppression: As mentioned earlier, DC circuits tend to generate more arcing when opened. High voltage DC contactors are equipped with arc suppression mechanisms, such as magnetic blowouts or specialized arc chambers, to safely extinguish the arc and prevent damage to the contactor.
Renewable energy systems are designed to operate for many years—sometimes decades—without interruption. This longevity depends on the reliability and durability of the components used, including high voltage DC contactors. These contactors are built to handle continuous operation in tough environments while maintaining optimal performance.
In solar power systems, for example, contactors must endure exposure to UV rays, extreme temperatures, and moisture. In wind power systems, the components must withstand the mechanical vibrations and constant motion of the turbines. High-quality DC contactors are designed to operate in these challenging conditions, providing long-term durability and minimizing the need for maintenance or replacement.
Another critical function of high voltage DC contactors in renewable energy systems is their role in power storage and distribution. Solar and wind energy systems often rely on large battery storage units to store energy for use when the generation of power is low, such as at night or during periods of little wind.
High voltage DC contactors are used to manage the connection between the solar panels or wind turbines and the battery storage units. When energy is being stored, the contactor ensures that the current flows from the power source to the battery safely and efficiently. Similarly, when power is being discharged from the battery to supply energy to the grid or a local load, the contactor ensures that the connection is made in a controlled manner.
By maintaining a reliable and efficient flow of energy, high voltage DC contactors help optimize the performance of energy storage systems, improving the overall effectiveness of the renewable energy system.
Most renewable energy systems are connected to the grid to supply power to homes, businesses, or other consumers. However, the electricity generated by solar panels or wind turbines is often in DC form, while the grid operates on AC. High voltage DC contactors are essential in the process of converting and distributing this power from the renewable energy system to the AC grid.
In this context, DC contactors are used in conjunction with inverters to switch DC power to the inverter and ensure that the power is properly converted to AC. The contactor ensures that the DC circuit is connected or disconnected safely and at the appropriate times, allowing the inverter to perform the conversion efficiently.
Modern renewable energy systems are often equipped with smart monitoring and control systems that enable operators to track system performance and perform remote diagnostics. High voltage DC contactors can be integrated into these systems, allowing for remote switching and monitoring of power circuits.
For example, if a fault is detected in the system, the contactor can be automatically activated to disconnect the affected circuit, preventing damage or safety risks. Likewise, maintenance tasks or upgrades can be performed remotely by controlling the contactors from a centralized control center, reducing the need for manual intervention and improving the overall efficiency of the system.
In solar power systems, high voltage DC contactors are used to safely manage the flow of electricity from the solar panels to the battery storage and then to the inverter for conversion to AC. They are critical for maintaining the system’s safety and efficiency, especially when disconnecting the solar panels for maintenance or when managing the charging and discharging of battery banks.
Wind turbines generate DC power that must be converted and stored in batteries or distributed to the grid. High voltage DC contactors are used to switch power between the turbine’s generator, the battery storage system, and the inverter. These contactors help ensure safe and efficient operation, especially in large-scale wind farms where the generation and storage of energy can be vast.
In energy storage systems, high voltage DC contactors are used to manage the charging and discharging of batteries, ensuring that power flows efficiently between the storage units and the grid. They play a crucial role in balancing supply and demand by enabling energy storage during periods of excess generation (such as sunny or windy days) and discharging energy when demand is high.
Grid-tied renewable energy systems rely on high voltage DC contactors to integrate renewable energy generation with the grid. The contactor ensures that power from solar panels or wind turbines is safely fed into the grid at the correct voltage and current levels, while maintaining the safety and stability of both the renewable energy system and the grid.
High voltage DC contactors are essential components in the operation of renewable energy systems. They ensure the safe, efficient, and reliable flow of electricity in systems that generate, store, and distribute power from renewable sources. Whether in solar or wind power systems, energy storage units, or grid integration, these contactors play a critical role in managing power flow, protecting against electrical faults, and improving system performance.
As renewable energy systems continue to grow in scale and complexity, the importance of high voltage DC contactors will only increase. Their ability to manage high voltage DC circuits, prevent electrical arcing, and provide long-term reliability makes them indispensable in the quest for a sustainable and efficient energy future.
