High voltage DC contactors are essential electrical components used in numerous industries, including energy storage, electric vehicles (EVs), renewable energy systems, and industrial machinery. These contactors are designed to safely control and switch high-voltage DC circuits, ensuring the proper functioning of the system and maintaining safety standards. They play a critical role in regulating electrical power flow, preventing short circuits, and protecting sensitive equipment from power surges or failures.
In this article, we will explore the key features of high voltage DC contactors, their applications, and why they are indispensable in modern electrical systems. Additionally, we will discuss the rated current ranges—specifically 10A-50A and 100A-250A—that are commonly associated with these contactors, and how selecting the right one is crucial for the efficiency and safety of electrical systems.

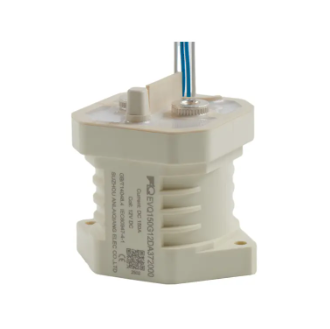

A high voltage DC contactor is an electrical switch that controls the flow of direct current (DC) electricity in high-voltage circuits. These contactors are designed to open or close electrical circuits under high voltage and current conditions, typically found in applications that involve DC power sources, such as electric vehicles, battery storage systems, and solar power generation systems.
High voltage DC contactors are different from their AC counterparts, as they are designed to handle the unique challenges posed by DC circuits. Unlike alternating current (AC), which changes direction periodically, direct current flows in one continuous direction. This presents a challenge in terms of safely interrupting or switching the current, especially at high voltages, where the arcing during the switching process can be intense. High voltage DC contactors are built to address these challenges through specialized components and design features.
One of the most important characteristics of high voltage DC contactors is their rated current and voltage capacity. The rated current indicates the maximum amount of current the contactor can safely handle without overheating or sustaining damage. Common rated current ranges for high voltage DC contactors include:
10A-50A Rated Current: These contactors are typically used in smaller, lower-power applications where the electrical demand is moderate. They are commonly found in systems such as residential solar power systems or smaller battery management systems (BMS) in electric vehicles (EVs).
100A-250A Rated Current: These contactors are designed for higher-power applications, such as industrial energy storage systems, electric vehicle charging stations, and large-scale solar or wind power installations. They can handle greater currents and are used in more demanding systems where high current flow is required.
The rated voltage indicates the maximum voltage the contactor can handle. Common voltage ratings for high voltage DC contactors range from 250V to several kilovolts (kV), depending on the application and the power demands.
When switching DC circuits, especially at high voltages, electrical arcing can occur, which is a dangerous phenomenon where a visible discharge of electricity jumps between the contact points as the circuit is opened. This arc can cause extensive damage to the contactor and other electrical components, leading to system failure or fire hazards.
High voltage DC contactors are designed with arc suppression mechanisms to mitigate this risk. These mechanisms can include:
Arc Chambers: A dedicated space where the arc is contained and extinguished more quickly.
Magnetic Blowouts: Strong magnetic fields that help direct the arc away from the contact surfaces, preventing it from causing damage.
Gas-Filled Contacts: Specialized gases are used in the contactor's design to absorb and neutralize the energy from the arc.
These arc suppression features ensure that high voltage DC contactors can safely switch circuits without compromising the reliability and longevity of the electrical system.
High voltage DC contactors must be able to operate quickly and repeatedly, especially in systems where rapid switching is required, such as in battery management systems and electric vehicle charging circuits. They are designed for high-speed operation, ensuring that the circuits are opened or closed with minimal delay.
Additionally, these contactors are built to endure high wear and tear. The components used in their construction are made of durable materials that can withstand high currents and temperatures, ensuring reliable performance over an extended lifespan.
In applications where space and weight are critical factors—such as in electric vehicles and mobile power systems—high voltage DC contactors are often designed to be compact and lightweight. Their small size allows for efficient use of space while still maintaining the necessary power handling capabilities.
The compact design also makes them suitable for use in systems with limited space for electrical components, such as in the tightly packed powertrains of electric vehicles.
Safety is paramount when dealing with high voltage DC circuits. High voltage DC contactors are equipped with several built-in safety features, including:
Overload Protection: Prevents the contactor from handling currents higher than its rated capacity, which could lead to overheating or failure.
Short-Circuit Protection: Ensures the contactor disconnects the circuit quickly in the event of a short circuit, preventing potential damage to the system.
Temperature Sensors: Monitors the temperature of the contactor to prevent overheating and potential fire hazards.
Fault Indicators: Provides visual or auditory alarms to alert users in case of any malfunction or fault.
These safety features help ensure that high voltage DC contactors can be safely used in critical applications, minimizing the risk of accidents or equipment damage.
One of the most significant applications for high voltage DC contactors is in electric vehicles. These vehicles rely on high voltage DC circuits to power their electric motors and battery management systems. High voltage DC contactors are used to control the flow of electricity between the battery pack and other components, ensuring safe and efficient operation. They are also employed in charging stations, where they manage the power flow between the grid and the vehicle's battery.
In EVs, these contactors help manage power distribution, protect the system from short circuits or overloads, and facilitate rapid switching during charging and discharging cycles.
In large-scale battery storage systems, which are used to store energy generated from renewable sources like solar or wind power, high voltage DC contactors are critical for safely switching and controlling the flow of electricity. These contactors are used to connect and disconnect battery banks, ensuring efficient charging and discharging cycles.
They also help maintain the system's safety, protecting against overcharging, short circuits, and thermal runaways, which can lead to battery damage or fires.
High voltage DC contactors are also used in solar and wind power systems to manage the electrical flow between the generation units and the storage or distribution systems. In solar power systems, for example, DC contactors are used to disconnect the solar panels from the grid when maintenance is needed or in the event of a fault. Similarly, in wind turbines, DC contactors are used to regulate the power from the turbine's generator to the storage or grid connection.
In industrial settings, high voltage DC contactors are used in power distribution systems to safely manage the flow of electricity. They are essential in controlling the flow of DC power to machinery, equipment, and other industrial systems. These contactors ensure that high voltage DC circuits are switched on and off efficiently, maintaining the safety and stability of the entire system.
High voltage DC contactors are indispensable components in modern electrical systems, playing a crucial role in managing and controlling high-voltage DC circuits in a safe and efficient manner. Their key features—such as high rated current and voltage capacity, arc suppression, durability, and safety mechanisms—make them ideal for use in electric vehicles, battery storage systems, renewable energy applications, and industrial power distribution.
When selecting a high voltage DC contactor, it’s essential to consider factors such as the required rated current (10A-50A or 100A-250A), the operating environment, and safety features. By choosing the right contactor for your specific application, you ensure the efficiency, safety, and longevity of your electrical systems.
High voltage DC contactors are not just crucial for the present; they are also key to the future of energy storage and power distribution, contributing significantly to the development of sustainable energy solutions and the transition to electric vehicles and renewable energy systems.
