high voltage switch
EVC Series

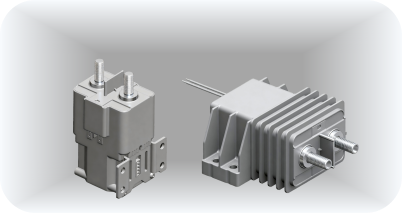

Sealed DC Contactor
The EVC series DC contactors are specifically designed for industrial vehicles,
high-voltage frequency converters, and PCS (Power Conversion Systems). This
series of DC contactors features excellent resistance to capacitive load surges,
ensuring that the power contacts are less prone to welding.
Image Part Number Rated Current (A) Max. Switching Voltage (V DC) Coil Voltage Rating Options (V DC) Power Contact Arrangement Auxiliary Contact Arrangement Options Coil Characteristic Load Termination Mounting Type Options Certificates
EVC2A-80 500V DC / 80A DC Contactor EVC2A-80 80 500 12 / 24 / 48 SPST-NO-DM None Single coil, Quick-connect External thread (M6) Bottom / Side
EVC2A-100 500V DC / 100A DC Contactor EVC2A-100 100 500 12 / 24 / 48 SPST-NO-DM None Single coil, Quick-connect External thread (M6) Bottom / Side
EVC2A-125 500V DC / 125A DC Contactor EVC2A-125 125 500 12 / 24 / 48 SPST-NO-DM None Single coil, Quick-connect External thread (M6) Bottom / Side
EVC5A-150 500V DC / 150A DC Contactor EVC5A-150 150 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Quick-connect External thread (M8) Bottom / Side
EVC5A-200 500V DC / 200A DC Contactor EVC5A-200 200 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Quick-connect External thread (M8) Bottom / Side
EVC5A-250 500V DC / 250A DC Contactor EVC5A-250 250 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Quick-connect External thread (M8) Bottom / Side
EVC7A-400 500V DC / 400A DC Contactor EVC7A-400 400 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Quick-connect External thread (M10) Bottom / Side
EVC7A-500 500V DC / 500A DC Contactor EVC7A-500 500 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Quick-connect External thread (M10) Bottom / Side
EVC7A-600 500V DC / 600A DC Contactor EVC7A-600 600 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Quick-connect External thread (M10) Bottom / Side
EVC7AX-400 500V DC / 400A DC Contactor EVC7AX-400 400 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Leads External thread (M10) Side
EVC7AX-500 500V DC / 500A DC Contactor EVC7AX-500 500 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Leads External thread (M10) Side
EVC7AX-600 500V DC / 600A DC Contactor EVC7AX-600 600 500 12 / 24 / 48 SPST-NO-DM SPST-NO / SPST-NC / None Single coil, Leads External thread (M10) Side

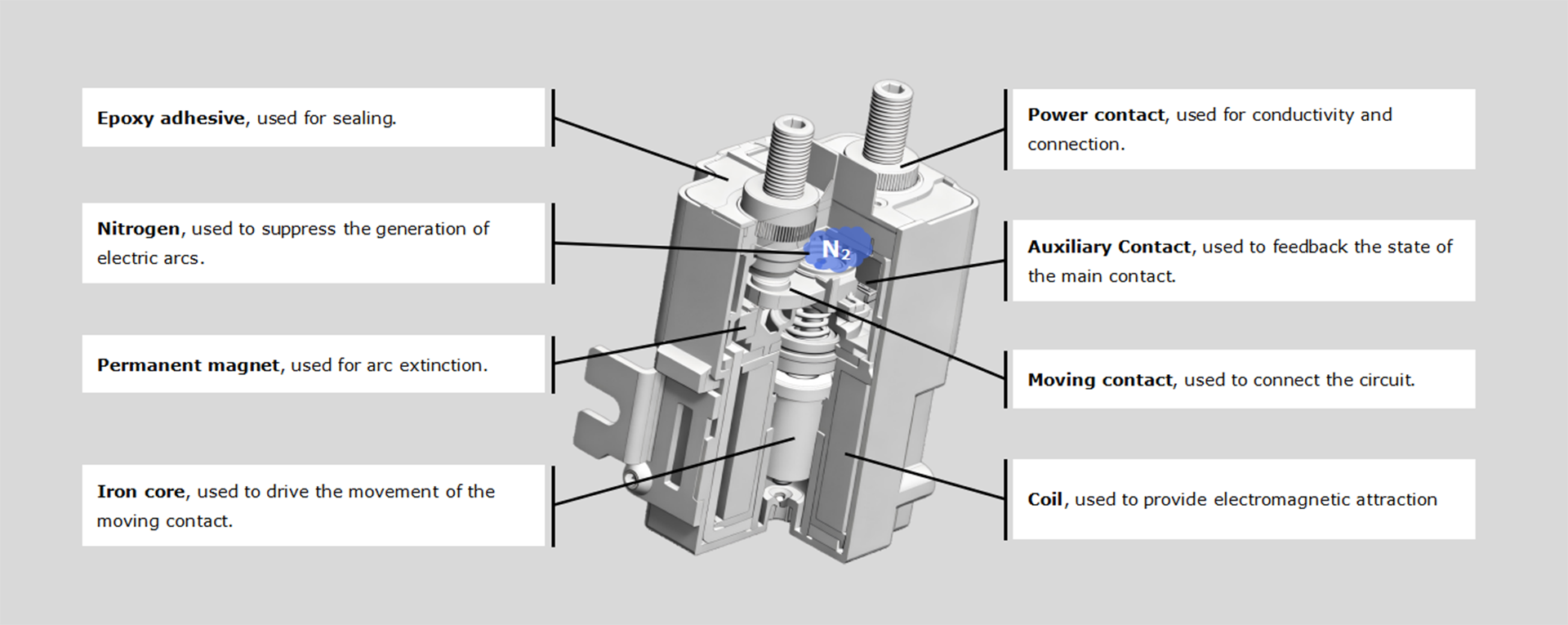

Internal Structure of EVC Series DC Contactors
