DC Contactors by Voltage: High Voltage & Low Voltage Solutions

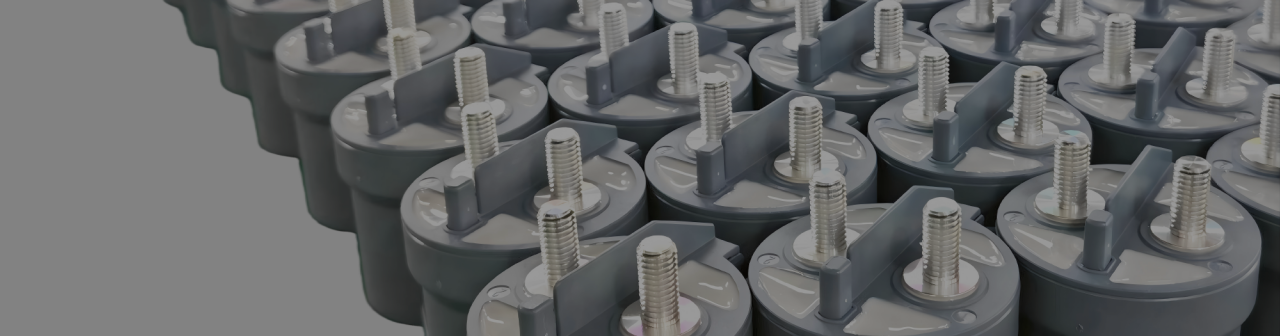

EVQ Series

Epoxy-Encapsulated DC Contactor / DC Relay

The epoxy-encapsulated DC contactor / DC relay is designed for high load voltage, high protection level,

and high reliability, making it the best choice for your industrial vehicles, DC charging pile, energy storage

system, high-voltage frequency converter, battery testing equipment, uninterruptible power supply, and

other high-voltage DC systems.

Part Number	Rated Current (A)	Max. Switching Voltage (V DC)	Coil Voltage Rating Options (V DC)	Power Contact Arrangement	Auxiliary Contact Arrangement Options	Coil Characteristic	Load Termination	Mounting Type Options	Certificates
EVQ1C-10	10	1000	12 / 24 / 48	SPST-NO-DM	None	Single coil, Leads	Internal thread (M4)	Bottom	CE, TÜV
EVQ1C-30	30	1000	12 / 24 / 48	SPST-NO-DM	None	Single coil, Leads	Internal thread (M4)	Bottom	CE, TÜV
EVQ1C-50	50	1000	12 / 24 / 48	SPST-NO-DM	None	Single coil, Leads	Internal thread (M4)	Bottom	CE, TÜV
EVQ1D-10	10	1000	12 / 24 / 48	SPST-NO-DM	None	Single coil, Quick-connect	Internal thread (M4)	Bottom	CE, TÜV
EVQ1D-30	30	1000	12 / 24 / 48	SPST-NO-DM	None	Single coil, Quick-connect	Internal thread (M4)	Bottom	CE, TÜV
EVQ1D-50	50	1000	12 / 24 / 48	SPST-NO-DM	None	Single coil, Quick-connect	Internal thread (M4)	Bottom	CE, TÜV
EVQ2H-100	100	1500	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, Leads	Internal thread (M5)	Bottom / Side
EVQ2H-135	135	1500	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, Leads	Internal thread (M5)	Bottom / Side
EVQ3G-150	150	1500	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, Leads	Internal thread (M5)	Bottom
EVQ5E-200	200	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M8)	Bottom	CCC, UL, CE, TÜV
EVQ5E-250	250	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M8)	Bottom	CCC, UL, CE, TÜV
EVQ5E-300	300	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M8)	Bottom	CCC, UL, CE, TÜV
EVQ5E-350	350	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M8)	Bottom	CCC, UL, CE, TÜV
EVQ5K-200	200	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ5K-250	250	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ5K-300	300	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ5K-350	350	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ5KH-250	250	500	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ5KH-300	300	500	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ5KH-400	400	500	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M8)	Bottom	CCC, CE, TÜV
EVQ7A-400	400	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M10)	Bottom
EVQ7A-500	500	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M10)	Bottom
EVQ7A-600	600	1000	12 / 24 / 48	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil, TVS, Quick-connect	External thread (M10)	Bottom
EVQ8C-400	400	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M10)	Bottom	CCC
EVQ8C-500	500	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M10)	Bottom	CCC
EVQ8C-600	600	1000	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M10)	Bottom	CCC
EVQ15-400	400	1500	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M10)	Bottom	CCC, UL, CE
EVQ15-500	500	1500	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M10)	Bottom	CCC, UL, CE
EVQ15-600	600	1500	12 / 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Dual coil, Leads	External thread (M10)	Bottom	CCC, UL, CE
EVQ9A-800	800	1500	12 - 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil + PWM, Quick-connect	External thread (M8)	Bottom	CCC
EVQ9A-1000	1000	1000	12 - 24	SPST-NO-DM	SPST-NO / SPST-NC / None	Single coil + PWM, Quick-connect	External thread (M8)	Bottom	CCC

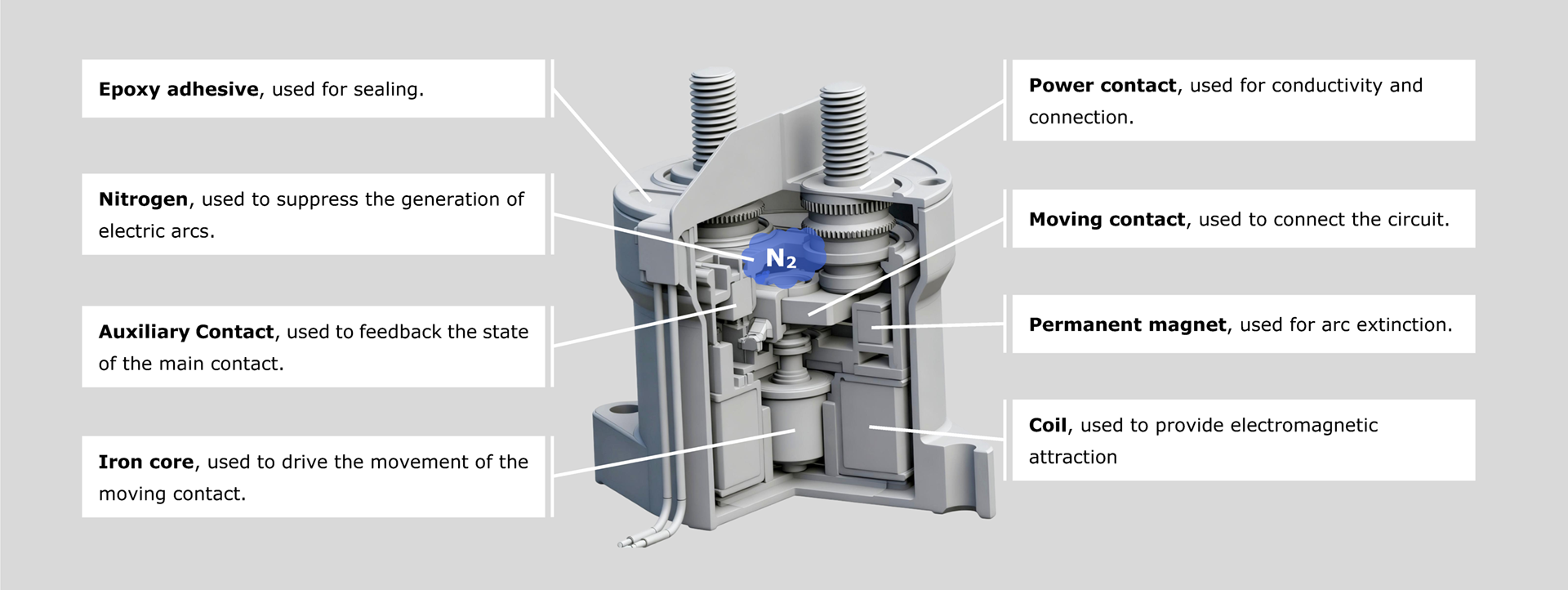

Internal Structure of EVQ Series DC Contactors
