dc power relay
EVH Series

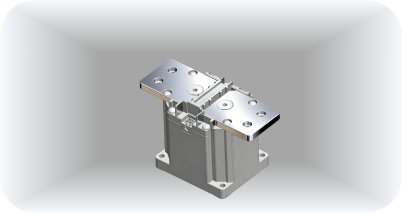

Ceramic-Encapsulated DC Contactor
The EVH series DC contactors demonstrate outstanding performance in on-load
switching under high-voltage loads.
Image Part Number Rated Current (A) Max. Switching Voltage (V DC) Coil Voltage Rating Options (V DC) Power Contact Arrangement Auxiliary Contact Arrangement Options Coil Characteristic Load Termination Mounting Type Options Certificates
EVH9A-800 1500V dc / 800A DC Contactor EVH9A-800 800 1500 12 - 24 DPST-NO-DM SPST-NO / SPST-NC / None Single coil + PWM, Quick-connect Internal thread (M10) Bottom CCC, UL, CE, TÜV
EVH9A-1000 1500V dc / 1000A DC Contactor EVH9A-1000 1000 1500 12 - 24 DPST-NO-DM SPST-NO / SPST-NC / None Single coil + PWM, Quick-connect Internal thread (M10) Bottom CCC, UL, CE, TÜV
